Tiger 1050 bolts handguards search

Triumph Motorcycles Adventure
1

Hello everyone,

My name is Ronald Hoekstra and I’m from the Netherlands. I recently became the proud owner of a Triumph Tiger 1050 and I’m thoroughly enjoying the bike.

The motorcycle came with a set of genuine Triumph handguards, part number A9700207. Unfortunately, the four mounting bolts are missing. I’ve searched for the specifications and part numbers, but so far I haven’t been able to find any information.

Does anyone have these handguards fitted to their bike, or access to the parts information, and could help me identify the correct bolts or the corresponding Triumph part numbers?

Any help would be greatly appreciated.

Many thanks in advance!

Best regards,

Ronald Hoekstra
The Netherlands

2

Hi and welcome. I can’t help with the bolts, sorry. However, a picture of the guards and the location for the bolts would help the guys.

3

Hi and welcome. Can’t help you I’m afraid, but I suppose a dealer could be of some assistance?

4

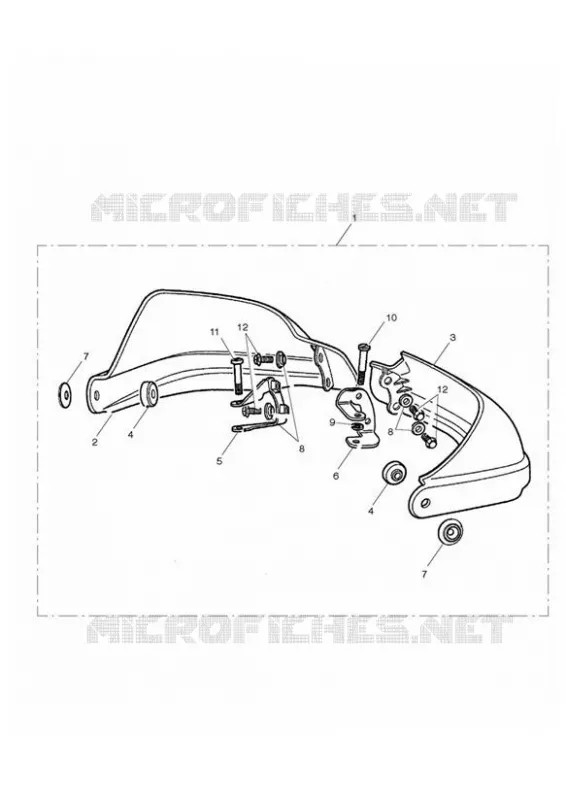

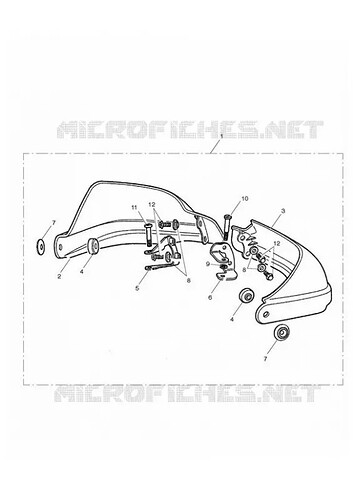

Can you identify them from here?

17807695945987796946307966320126
17807695945987796946307966320126566×800 39.5 KB

2 Likes
5
1 Like
6

Superrr. I could not find that. I need bolts number 10 and 11. Thank you very much

1 Like
7

I think 10 and 11 are the longer pivot bolts for clutch and brake lever. You said you needed 4 bolts…they might be the M6 x 16 bolts listed as no 12

1 Like
