Sludge trap

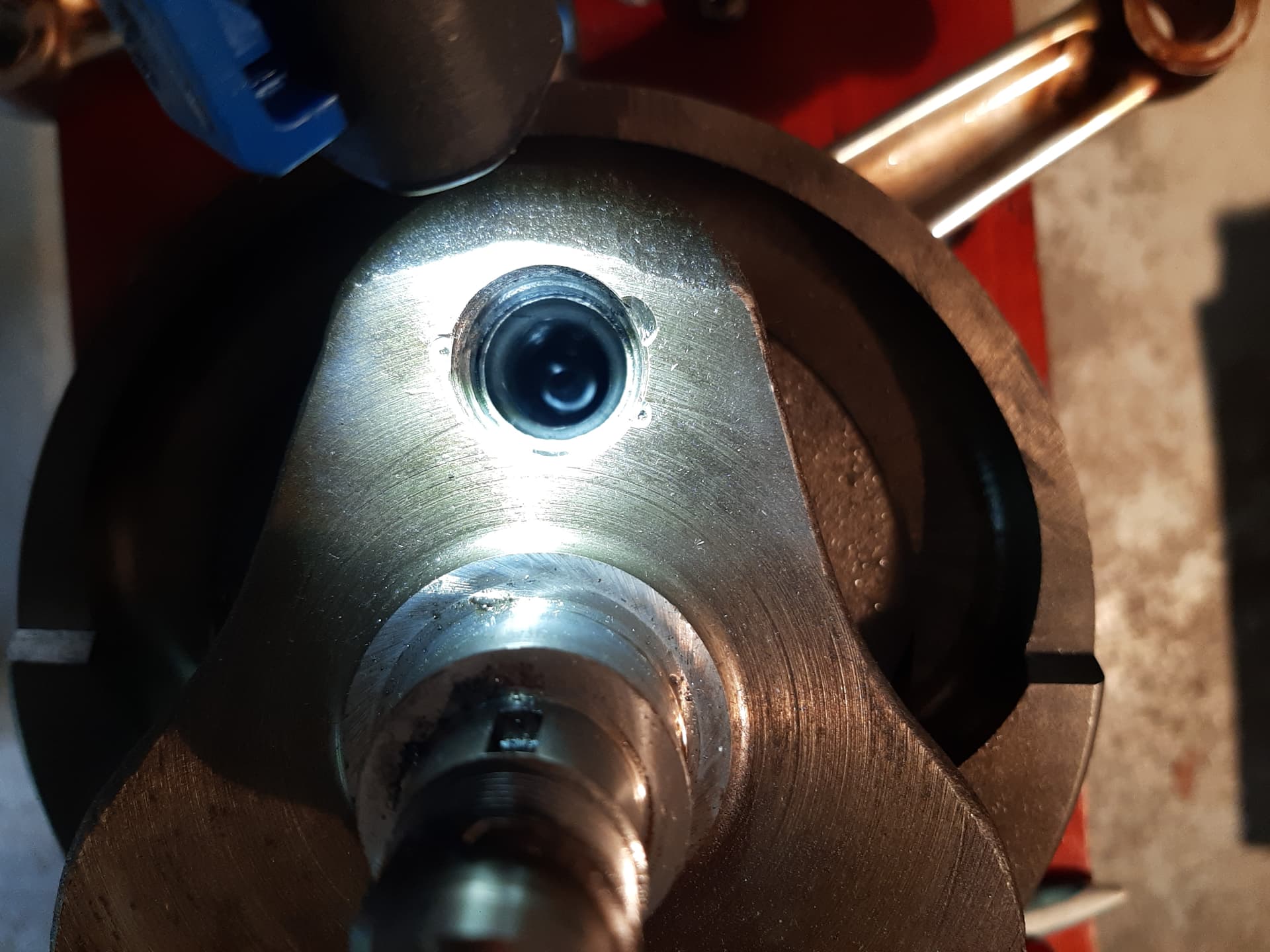

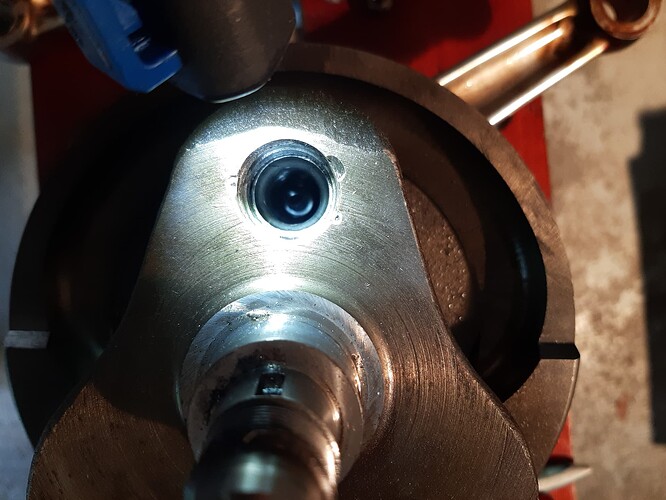

Hi guys, finally I ve reached the sludge trap. It was quite dirty, forgot to make a pic. What do you guys think? Is it necessary to take the tube out for cleaning it perfect or is it enough in the installed state? I m thinking of the small passages.

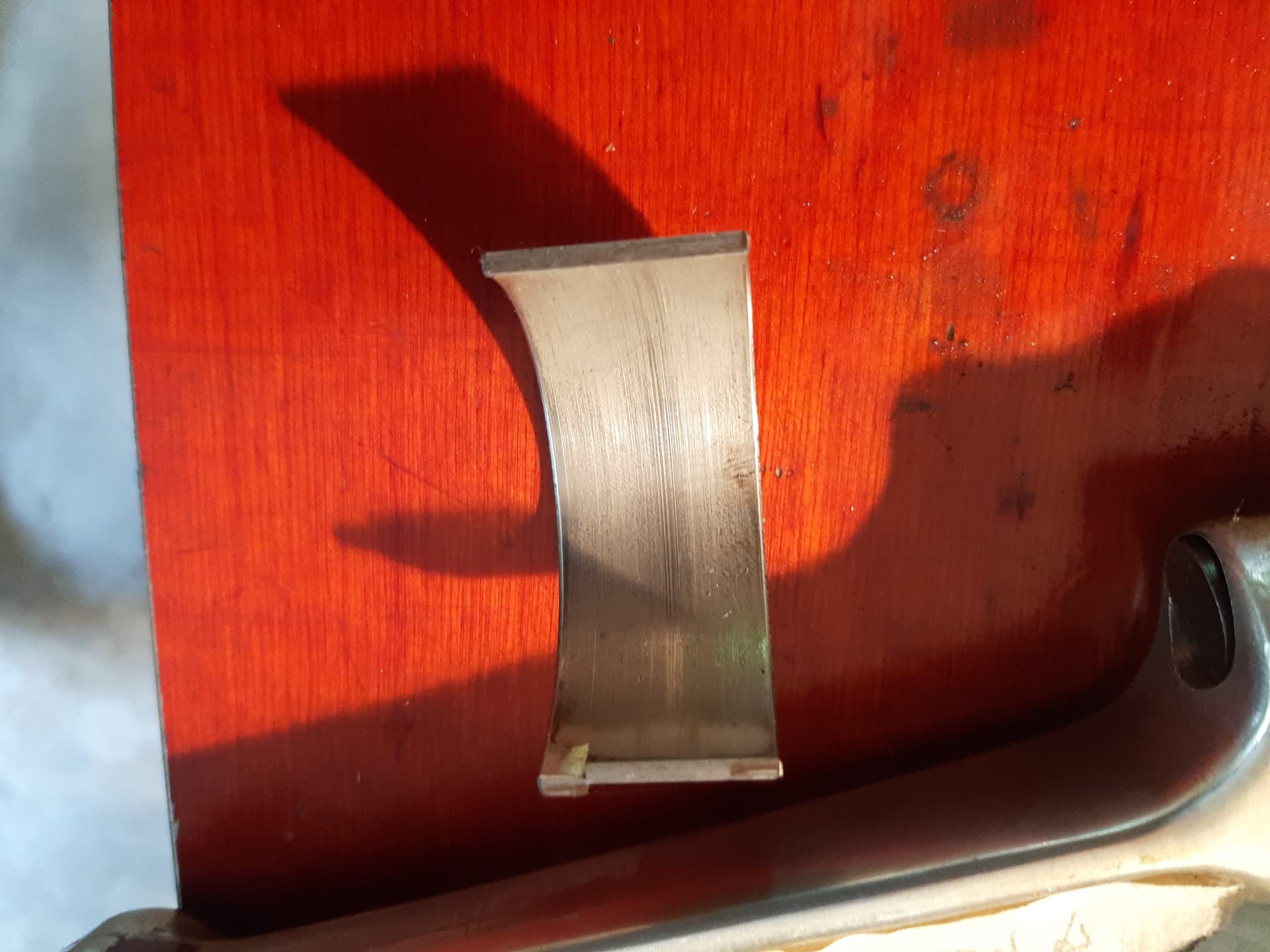

And I guess the big end bearing need to be renewed, although it has no tolerance.

… @Iron, I love my wodden stand. The carpenters solution, very helpfull, cheap and variable
… and thanx all the others for the warm welcome few weeks ago :smile:

2 Likes

Good job. Sometimes those sludge trap plugs are a pain to get out - glad to see you got it.
Yes, take the tube out and clean everything. Ensure the oilways all freely flow.
There are several methods to remove the tube, as I always renew both the tube and the plug (the newer allen bolt plugs are better but ensure it isn’t screwed in too far to cover the oilway).

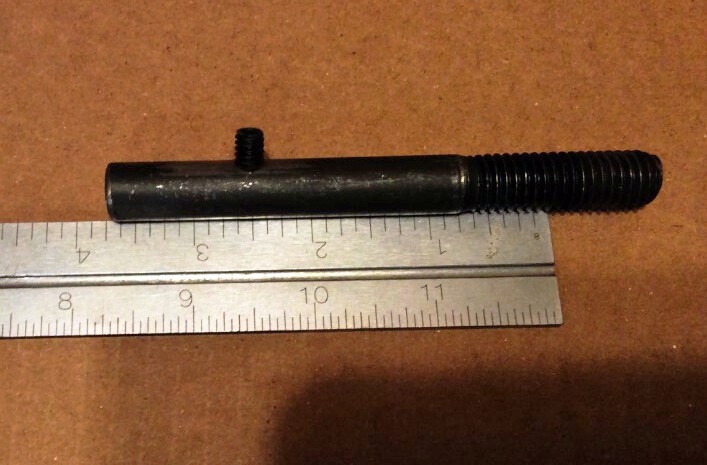

I use a tap to screw into the tube (I think it’s a 5/8 thread) to pull out or you can make up something like this

Always replace the big end shells as they are fairly cheap. Make sure you have the correct size.

1 Like

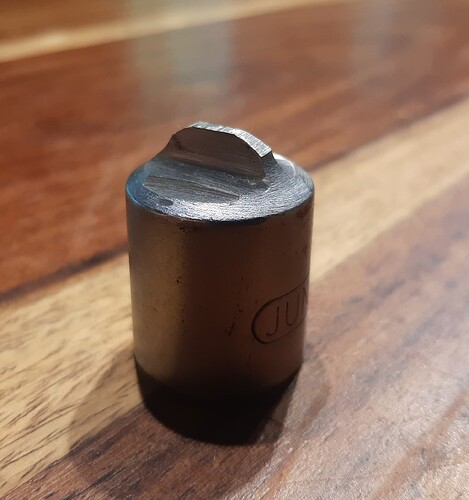

Made this from a broken tool …


Will try a 16mm thread to pull it out, its easier for me to get it and its only 0,3mm larger than a 5/8
